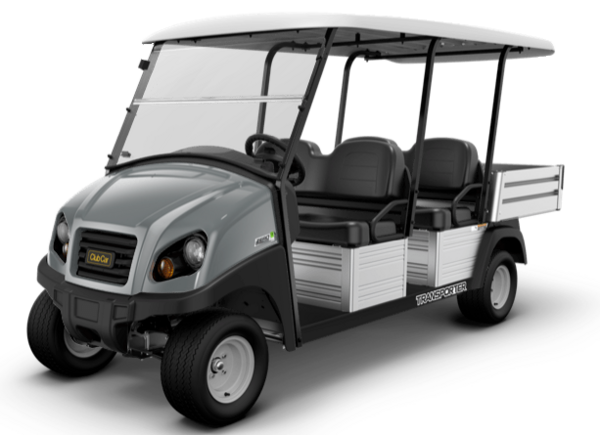

Club Car Transporter 4
The Club Car Transporter is the ideal solution for transporting people and loads on extensive terrain, in the industrial or agricultural sector. This versatile vehicle offers space for four people and also has a robust loading area for the safe transport of equipment, tools or other materials.
Equipped with a powerful electric motor, the Club Car Transporter offers a reliable and quiet ride. The chassis, body and cargo bed are made from our rust-proof aluminium. The high-quality construction ensures a long service life and minimal maintenance. Discover the first-class features and benefits of this multifunctional vehicle.
Color:
| Seats: | 4 |
| Field of application: | Industry, agriculture, hotels, campsites, sports facilities |
| Speed: | Up to max. 31km/h |
| Warranty: | 4 years on batteries, canopy, electronics | 3 years: body parts, electric drive | 2 years: all other components | Lifetime warranty: frame |
| Price: | On request |
Specification
Club Car Transporter 4
| Drive | electric |
| Batteries | (8) - 6 V |
| Power output | 3.3 HP |
| Charging unit | DeltaQ QuiQ (1KW High Frequency |
| Drive | Combustion engine |
| Engine | Subaru 4-stroke, OHC, 404 cm³, 1-cylinder, air-cooled, splash lubrication, spin-on oil filter |
| Power output | 14.0 hp at 3,600 rpm in accordance with SAE J1940 performance standard |
| Ignition | Electric with electronic limiter |
| Steering | Self-adjusting rack-and-pinion steering |
| Front suspension | Independent leaf spring with double hydraulic shock absorbers |
| Rear suspension | Leaf springs with two hydraulic shock absorbers |
| Brakes | Mechanical 4-wheel drum brake |
| Parking brake | Foot-operated, several locking positions |
| Chassis frame | Aluminium double T-beam |
| Front body | ArmorFlex® |
| Rear body | aluminium |
| Front wheels | 20 × 10-8, 6-ply, premium tread tyres |
| Rear wheels | 20 × 10-10, 6-ply, premium tread tyres |
| Overall length | 356.1 cm |
| Overall height | 119.6 cm |
| Overall width | 127.7 cm |
| Wheelbase | 251.7 cm |
| Load area L x W x H | 91.9 cm x 120 cm x 26.6 cm |
| Cargo bed height | 68.6 cm |
| Load capacity | 136 kg |
| Total load | 680.3 kg |
| Track width | 87.6 cm front, 97.8 cm rear |
| Unladen weight | 677.6 kg (with batteries) |
Notes on battery disposal
In accordance with the Battery Ordinance, consumers are legally obliged to return used batteries after use. Batteries must not be disposed of with household waste. You can return your used batteries to us free of charge:
Cart Care Company GmbH
Appener Str. 21
25482 Appen
Environmentally friendly disposal helps to protect our environment. Improper disposal can cause environmental damage. Please help to protect our environment by disposing of them correctly.
The symbols shown on the batteries have the following meaning:
The crossed-out wheelie bin symbol means that the battery must not be disposed of with household waste.
Pb = battery contains more than 0.004 per cent lead by mass
Cd = battery contains more than 0.002 per cent cadmium by mass
Hg = Battery contains more than 0.0005 per cent mercury by mass.
